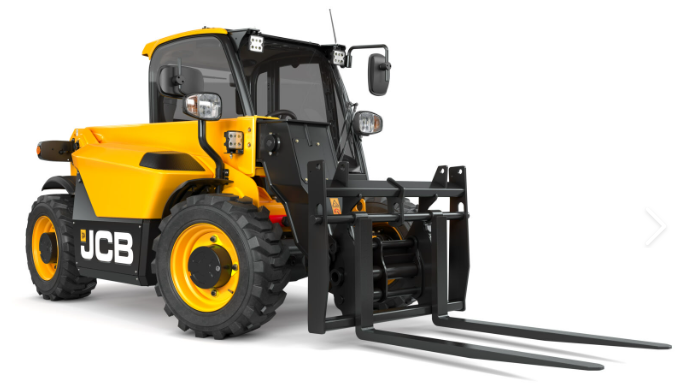

17m telehandler JCB 540-170
The JCB 540-170 construction Loadall is a telehandler that’s designed to meet the challenges of any site head-on.
The latest and cleanest JCB 540-170 Loadall is equipped with an ultra clean and efficient JCB Dieselmax Stage V engine. A robust design, the 540-170 effortlessly reaches it’s 17m lift height whilst maintaining full stability thanks to the patented Adaptive Load Control.
A clever 4-piece boom design combines a hydraulic ram and chains to extend or retract all the sections proportionally in one fast, smooth movement
Extremely manoeuvrable; the compact wheelbase, large steering lock angles and 3 steer modes save valuable time on site.
A patented load control system and sway frames allows for a safer and more stable load placement, whilst hose burst check valves protect the driver and bystanders in the event of hose failure.
Max Lift Capacity
4000 KG
Max Lift Height
16700 MM
Max Boom Reach
12500 MM
Max Lift Capacity At Full Height
2500 KG
Max Lift Capacity At Full Reach
600 KG
Weight
12060 KG
Dimensions
2690 H X 2440 W X 6360 L MM
*Specifications / Technical Data is subject to change and is for guidance only
